Name: Violin Pickup KNA VV-3 portable bridge-mounted piezo for violin or viola - Taal Musicals
SKU: 10916
Price: 6332.00 INR
Availability: InStock

Specifications

Specifications
Weight	36gr / 1.27
Wood	Solid ebony
Maximum Impedance	1500 Ω
Measurements
Specified part	Letter	Size in MM (from*)	Size in MM (to*)	Size in INCH (from*)	Size in INCH (to*)
Pickup sensor side diameter	a	12,0	12,1	0,472	0,476
Pickup sensor with extention diameter	b	12,7	12,8	0,500	0,504
Pickup sensor bottom diameter	c	12,0	12,1	0,472	0,476
Lead wire length	d	108,0	–	4,252	–
Jack housing length	e	43,9	44,0	1,728	1,732
Jack housing height	f	20,4	20,5	0,803	0,807
Mounting bracket and 23mm barrel tightened	g	32,0	–	1,260	–
Platform length	h	33,8	–	1,331	–
Pickup sensor thickness	i	1,9	2,0	0,073	0,079
Sensor to jack housing plug length	j	38,1	38,2	1,500	1,504
Jack housing width	k	17,6	17,7	0,693	0,697
Mounting bracket and 29mm barrel untightened	l	41,0	42,0	1,614	1,654
*Our handmade pickups may vary slightly in size due to the nature of the building

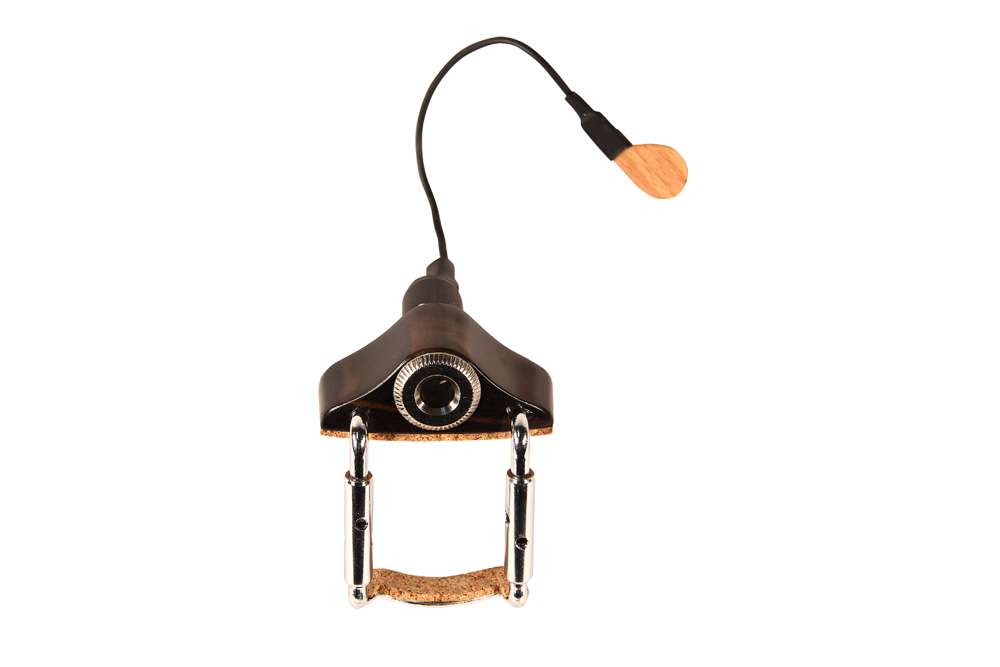

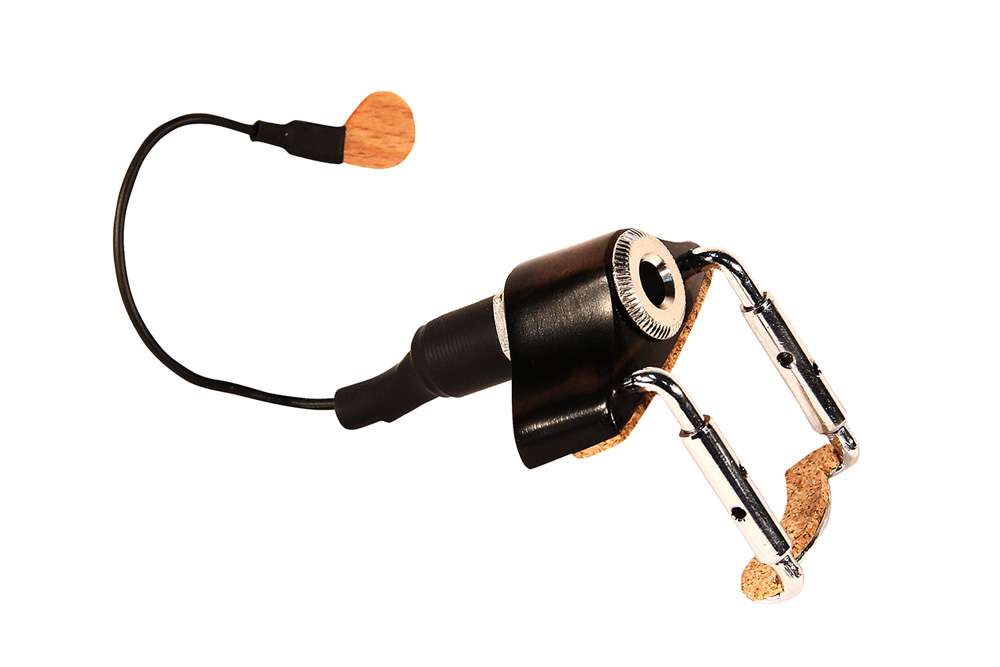

VV-3 violin pickup offers clean and clear acoustic sound with easy installation without modification to the instrument.

The lightweight low-profile ebony jack housing makes the unit ideal for a performing musician.

Features

Safe install

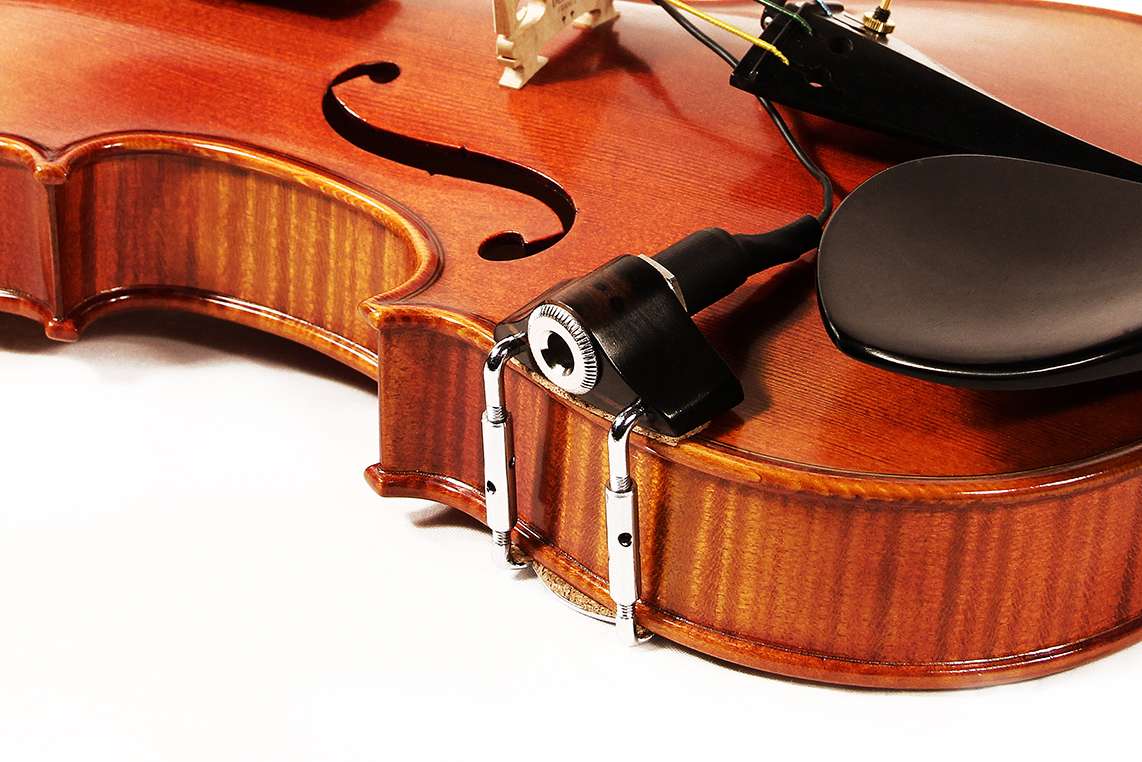

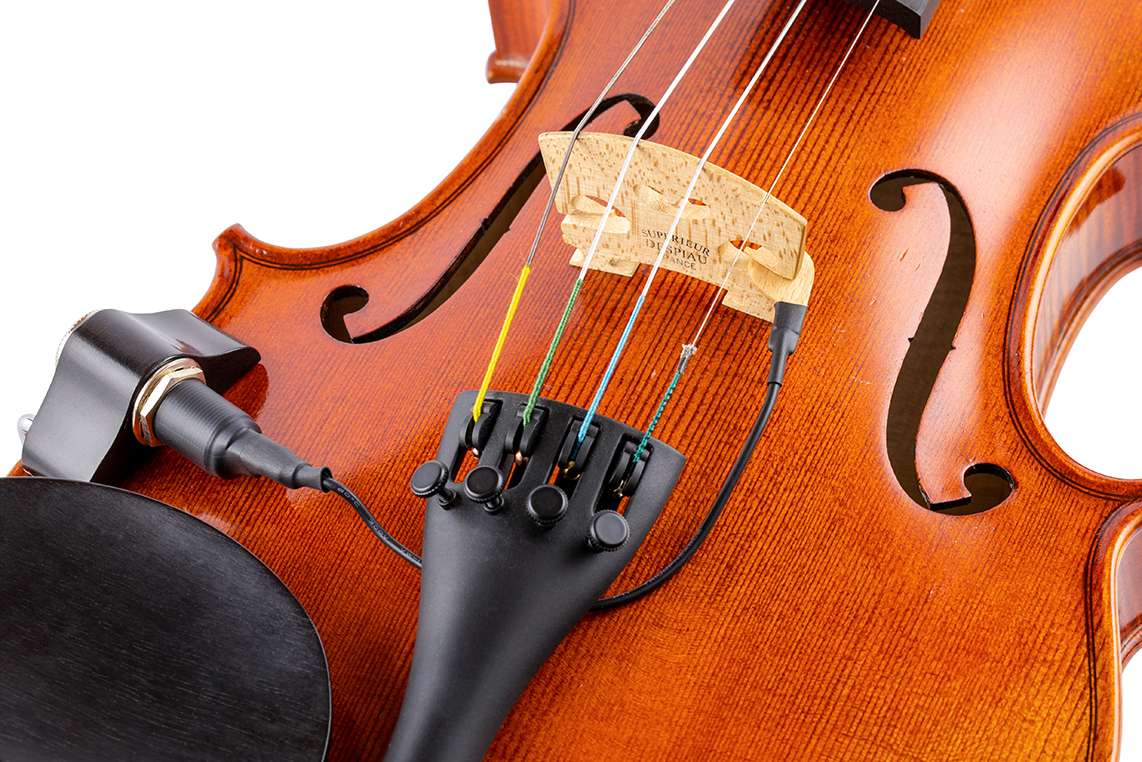

Just mount the pickup jack housing onto the lower bout, just below the waist on the 4th (G) string side of your instrument and adjust the height of the barrel clamps to tighten the pickup to the instrument.

Wooden housing and sensor

The jack housing is encased in elegant and stylish ebony and the piezo sensor has a lightweight wooden casing to achieve maximum tonal sensitivity and transmission.
