- Analog Filter
- STEREO
- Type: LPF1/LPF2/LPF3/HPF/BPF/Bypass
- Drive
- Amp
- Vocoder:
- Band: 13, 20, 32
- Type: Mono, Stereo
- Preset Setting: 10
- User Setting: 20
- Scene Chain:
- Chain: 16 Scenes x 32 Pages (Total 512 Scenes) per 1 Chain set
- Set: 100
- Marker: 62 (0–9, A–Z, a–z) per 1 Chain Set
Sequencer
- MIDI Tracks: 16
- Group:16
- Pattern: 8 (per each Track)
- Pattern Length: 64 measures
- Recording Method: Realtime recording, Step recording, TR-REC
- Editing Method: Piano roll edit (Touch Edit / Automation support), Microscope
- Song: 1 (per Scene)
- File format:
- Original, SMF export/import supported
- * PAD Sampler trigger data can be recorded.
Sampler – Keyboard Multisample
- Format: 16/24-bit linear, 44.1/48 kHz, WAV/AIFF
- Number of Samples: 8,000
- Number of Multisamples: 128
- Sampling Time:
- The maximum is 2 minutes 44 second (1 Sample).
- * A total of approximately 2 GB (Share with Expansion titles)
* Keyboard Multisample can import and export as ZEN-Core Tone.
Sample – PAD Sampler
- Format: 16-bit linear, 44.1/48 kHz, WAV/AIFF import supported
- Maximum Polyphony: 8
- Number of Samples: 16 Pads x 4 Banks
- Sampling Time:
- The maximum is 60 minutes (the equivalent of approximately 660 MB).
- * A total of approximately 2 GB (including imported WAV files)
When you use the PAD samples as KBD Wave, then you have to manipulation it.
- Sampler – Internal Storgae space for files
- Size: 2 GB
OTHER
- Rhythm Pattern: Yes
- Arpeggiator: Yes
- Chord Memory: Yes
- Motional Pad: Yes
- PAD Mode: Sample Pad, Note Pad, Partial Sw/Sel, DAW Control, Zone Mute, Zone Solo, Kbd Sw Group, Rhythm Pattern, Pattern, Variation Play, Group Play
- AIRA LINK:
- Yes
- * When connect to MX-1
- CV/Gate Control: 2 x CV/Gate or 3 x CV/1 x Gate
- Controllers:
- Pitch Bend/Modulation Lever *1
- Assignable Switch x 2 (S1/S2)
- Control knob x 8
- Slider x 8
- USB Audio slider
- Wheel x 2 *1
- Function knob x 6
- Sound Modified knob x 11 *1
- 4 x 4 Pad
- *1: 1024 step editing support
- Sound Modified knob can be use with Cutoff, Resonance, Attack , Decay , Sustain , Release , Amp , FX Depth.
- Display: Graphic Type, 7″, Wide VGA (800 x 480 dots), backlite LCD (Color/Touch screen, Wallpaper support)

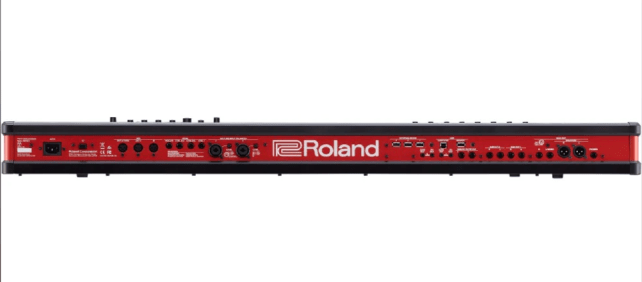

- Connectors:
- Headphones jack: Stereo 1/4-inch phone type
- MAIN OUT jacks (L/MONO, R) (1/4-inch phone type)
- MAIN OUT jacks (L, R) (XLR type)
- SUB OUT1 jacks (L, R) (1/4-inch phone type)
- SUB OUT2 jacks (L, R) (1/4-inch phone type)
- ANALOG FILTER OUT jacks (1,2) (1/4-inch phone type)
- Mic/Line Input jacks: (1,2) (1/4 inch phone type/XLR type)
- 2 x CV OUT, 2 x GATE OUT
- FOOT PEDAL jacks (HOLD, CTRL1, CTRL2, CTRL3) * 1024 Step value support
- MIDI connectors (IN, OUT1, OUT2/THRU) * High-resolution velocity data output support
- USB MEMORY Port(USB A)
- USB COMPUTER Port (AUDIO/MIDI)(USB B)
- 3 x External Device Port(USB A):Roland A-49 or an A-PRO series MIDI Controller
- can be connected. * Operation is not guaranteed if a generic MIDI device is connected.
- Audio Interface
- Max 24 bit/96 KHz
- Record 16 Stereo Channel
- Playback 3 Stereo Channel
- External Memory: USB Flash drive (sold separately)
- Power Supply: AC 117-240 V 50/60 Hz
- Power Consumption: 50 W
- Accessories:
- Owner’s manual
Power Cord
- Owner’s manual
- Options (sold separately):
- Keyboard Stand: KS-G8B, KS-11Z, KS-13
Pedal Switch: DP series, RPU-3
Expression Pedal: EV-5
USB Flash drive (*) - * Use a commercially available USB flash drive. However, we cannot guarantee that all commercially available USB flash drives will work.
- Keyboard Stand: KS-G8B, KS-11Z, KS-13
Size and Weight
- Width
- 1,084 mm
- 42-11/16 inches
- Depth
- 403 mm
- 15-7/8 inches
- Height
- 106 mm
- 4-3/16 inches
- Weight
- 15.3 kg
- 33 lbs 12 oz
