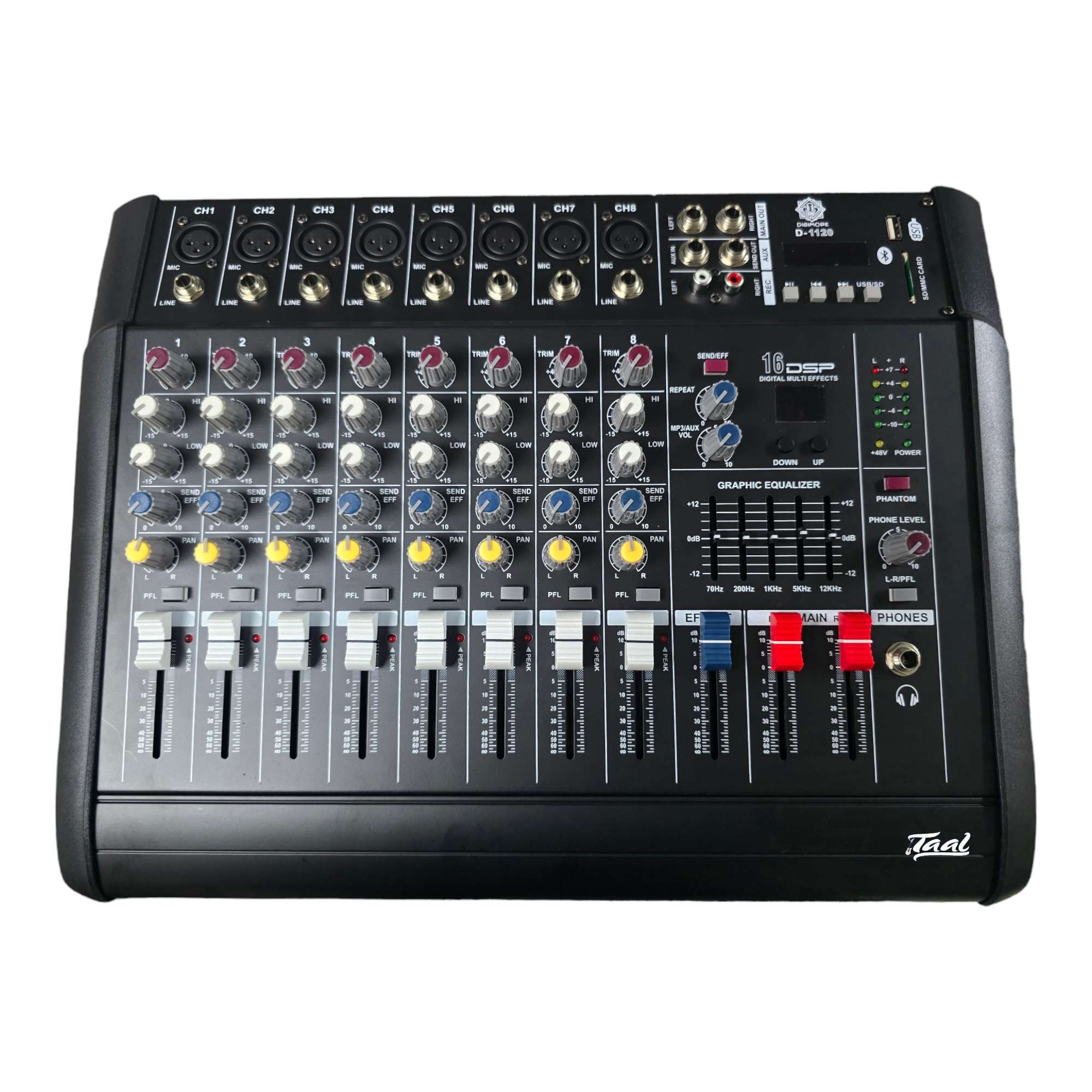

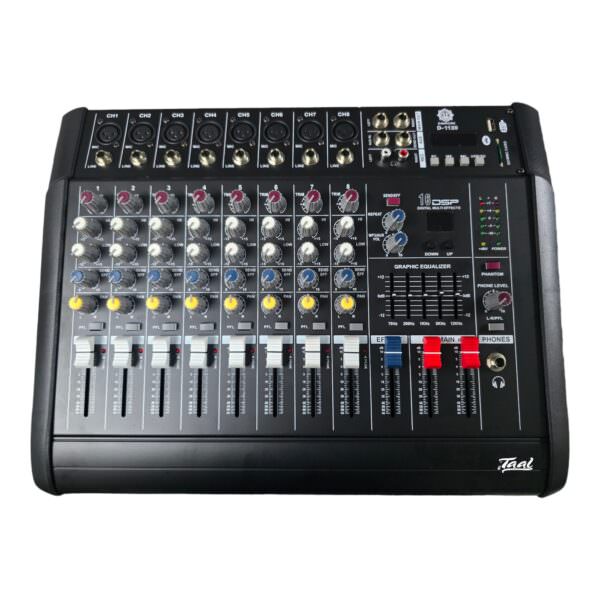

Digimore D-1120: 8-Channel Mic/Line Mixer – Taal Musicals

A. Input Channel Section
– **Balanced Input (Mic)**: Ensures high-quality sound with minimal noise.
– **Line Input**: Connects various audio sources for flexible mixing.
– **Gain Control**: Adjusts the input level for optimal signal strength.
– **High EQ**: Fine-tunes the high-frequency response.
– **Effect Control**: Adds external effects to the mix.
– **Pan Control**: Positions the sound in the stereo field.
– **PFL (Pre-Fade Listen)**: Monitors the channel without affecting the main mix.
– **Peak Indicator**: Alerts you when the signal is too strong.
– **Channel Fader**: Adjusts the channel’s volume level.

#### B. Master Section
– **Send/Effect Control**: Manages the levels sent to external effects.
– **Repeat/Aux Volume**: Controls auxiliary input levels.
– **Stereo Graphic EQ**: Shapes the overall tonal balance.
– **Output Main Fader**: Adjusts the main output levels for left and right channels.
– **Effect Level**: Controls the amount of effect in the mix.
– **DSP**: Digital Signal Processing for enhanced sound effects.
– **Output Level Indicator**: Visual representation of output levels.
– **Phantom Power Switch**: Provides power for condenser microphones.
– **Headphone Level Control**: Adjusts the headphone output volume.
– **PFL**: Monitors the main output through headphones.
– **Headphone Jack**: Connects headphones for monitoring.

#### C. Mixer Output Section
– **Left and Right Outputs**: Main outputs for connecting to amplifiers or speakers.
– **Aux Output**: Additional output for auxiliary equipment.
– **Recording Output**: Direct connection for recording devices.
– **Bluetooth Connectivity**: Wireless audio streaming from compatible devices.
– **Display**: Provides information on settings and levels.
– **USB/SD Card Interface**: Playback and recording directly from USB or SD cards.
– **Function Buttons**: Easy access to various mixer functions.

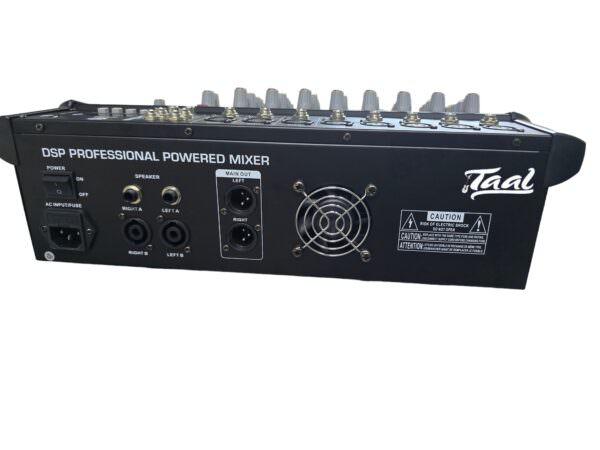

#### D. Power Section
– **Power Switch**: Turns the mixer on and off.
– **Power Jack**: Connects to the power source.
– **Speaker Jack (Left and Right)**: Direct connection to speakers.
– **Main Output**: Provides main output signal.
– **Manual Included**: Comprehensive guide for operating the mixer.

With its robust feature set, the Digimore D-1120 is an essential tool for any audio professional
